Cone Beam Scans Asheboro NC

Planmeca ProMax 3D – all-in-one unit

Planmeca ProMax 3D unitPlanmeca ProMax 3D unit is designed to obtain complete information on patient anatomy in the minutest detail. This intelligent, multipurpose X-ray unit provides digital panoramic, cephalometric, and 3D imaging as well as 3D photo.

Call today!

Full range diagnostics

Planmeca ProMax 3D X-ray unit comply with a multitude of diagnostic requirements: those of endodontics, periodontics, orthodontics, implantology, dental and maxillofacial surgery, and TMJ analysis. The images can be taken anywhere within the maxillofacial region.

Volume sizes can be selected to meet the diagnostic needs without excess radiation outside the area of interest.

  • The Ø80 x 80 mm image size is optimum for most diagnostic applications that require whole dentition, mandible, and maxilla in the same study volume.
  • The Ø80 x 50 mm volume can be used for single views of the mandible or maxilla.
  • The small Ø40 x 50 mm volume is intended for molar area studies or for planning 3rd molar extractions.
  • The basic volumes can also be stitched together to generate a larger view of patient anatomy.

Three separate 3D image views from a cone beam scan

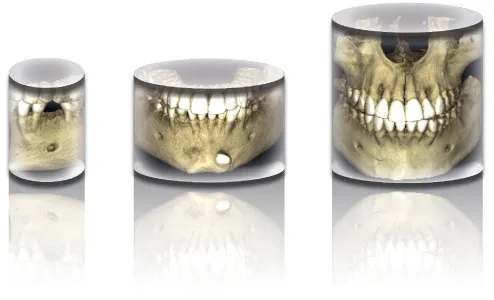

Volume sizes for all needs

Planmeca ProMax 3D​​

Voxel size, isotropic
Standard volume
(child mode) ​
Ø80 x 80 mm (Ø68 x 68 mm)
Ø80 x 50 mm (Ø68 x 42 mm)
Ø40 x 80 mm (Ø34 x 68 mm)
Ø40 x 50 mm (Ø34 x 42 mm)
100 μm, 200 μm, 400 μm
Stitched volume
140 x 105 x 130 mm
200 μm, 400 μm

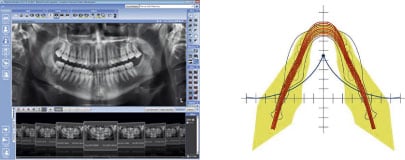

SmartPan, unique panoramic imaging

A unique SmartPan imaging system uses the same 3D sensor also for panoramic imaging. This eliminates need to change sensors. The SmartPan system automatically calculates 9 different panoramic curves in 2 mm shifts from the panoramic exposure data and one layer where the sharpness is automatically adjusted for all regions. The user can browse between the panoramic images and select the most suitable for diagnosis after the exposure.

SmartPan imaging system output

Planmeca Romexis for accurate diagnosis

Planmeca Romexis is a comprehensive software solution for acquisition, viewing, and processing of 3D radiographs, 3D photos and intraoral surface scans. The powerful combination of these modalities provides the most accurate information of patient anatomy for different needs. Planmeca Romexis software offers specially designed tools for implantologists, endodontists, periodontists, maxillofacial surgeons and radiologists. Learn more about Planmeca Romexis.

Planmeca ProFace – a unique option for acquiring a 3D photo and radiograph in one imaging session

Planmeca ProFace is a unique 3D facial photo option available for the whole Planmeca ProMax 3D family. Designed to fulfil the most diverse diagnostic needs of today’s maxillofacial and dental professionals, the upgraded unit acquires the patient’s facial 3D photo in a radiation-free process giving the medical or dental professional opportunity to plan operations and document the follow-up images. Learn more about Planmeca ProFace.

Easy cephalometry

Planmeca ProMax 3D can be equipped with digital cephalostat. By changing the place of the digital sensor the unit switches from panoramic to cephalometric imaging modality. The unit can also be equipped with two fixed digital sensors.

Call Today To Learn More About Cone Beam Scans

For any questions, or to schedule an appointment, call today!
